DTC P2135:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P2135:00 |
TP sensor No. 1/No. 2 voltage correlation |
| DETECTION CONDITION |
- The PCM flagged a concern indicating that TP sensor No. 1 and TP sensor No. 2 disagree by more than a calibrated limit.
|
| POSSIBLE CAUSE |
- TP sensor malfunction

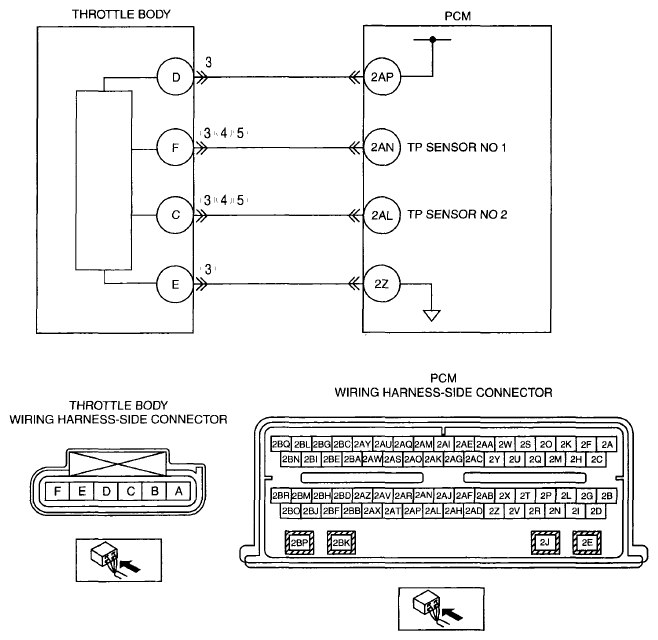

- Short to power supply between TP sensor No 1 terminal F and PCM terminal 2AN
- Short to power supply between TP sensor No 2 terminal C and PCM terminal 2AL
- TP sensor circuits are shorted each other
|
 Courtesy of MAZDA MOTORS CORP.
|
