DTC P2122:00 [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION & POSSIBLE CAUSE

DTC P2122:00	APP sensor No. 1 circuit low input
DETECTION CONDITION	APP sensor No. 1 is out of self-test range low.

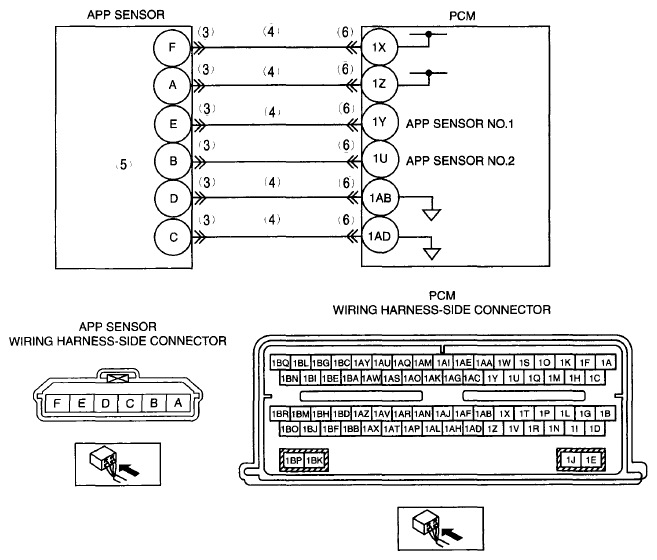

POSSIBLE CAUSE	Short to ground circuit between APP sensor terminal F and PCM terminal 1X Short to ground circuit between APP sensor terminal E and PCM terminal 1Y APP sensor malfunction Connector or terminal malfunction
Courtesy of MAZDA MOTORS CORP.
