DTC P1703:00 [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION & POSSIBLE CAUSE

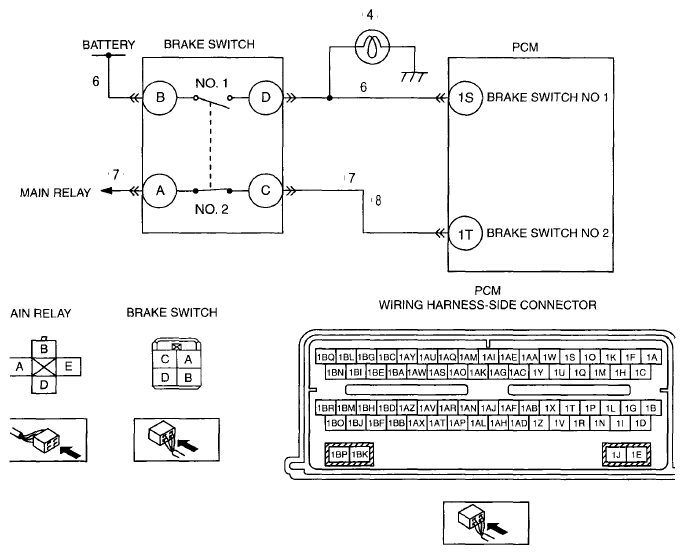

DTC P1703:00	Brake switch out of self-test range
DETECTION CONDITION	Indicates that during the KOEO self-test, the brake pedal position signal was high, or during the KOER self-test, the BPP signal did not cycle high and low
POSSIBLE CAUSE	Brake switch misinstallation Brake switch circuit malfunction Brake switch malfunction Connector or terminal malfunction
Courtesy of MAZDA MOTORS CORP.
