DTC P0626:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0626:00 |
Generator field terminal circuit high |
| DETECTION CONDITION |
- The PCM monitors generator load from the generator/regulator in the form of frequency The concern indicates the input is higher than the load should be in normal operation The load input could be high when a battery short to ground exists
|
| POSSIBLE CAUSE |

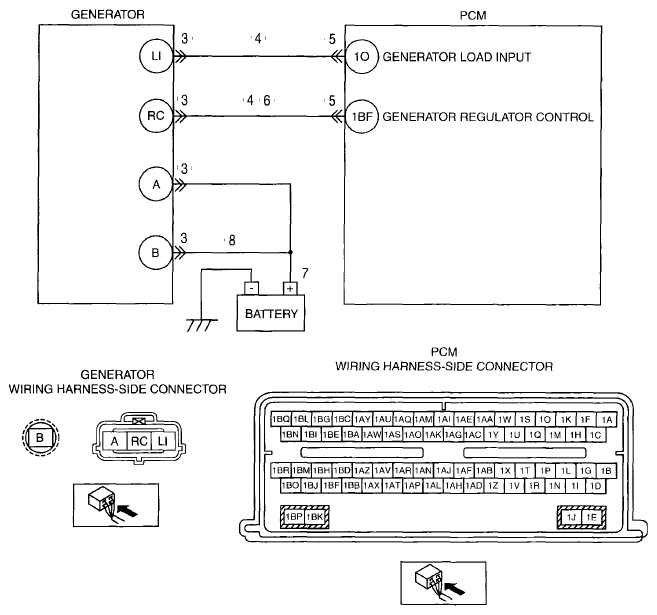

- Short to power supply between generator terminal RC and PCM terminal 1BF
- Short to power supply between generator terminal LI and PCM terminal 1O
- Open circuit in wiring harness between generator terminal RC and PCM terminal 1BF
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
