DTC P0625:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0625:00 |
Generator field terminal circuit low |
| DETECTION CONDITION |
- The PCM monitors generator load from the generator/regulator in the form of frequency. The concern indicates the input is lower than the load should be in normal operation The load input could be low when no generator output exists.
|
| POSSIBLE CAUSE |
- Drive belt damaged

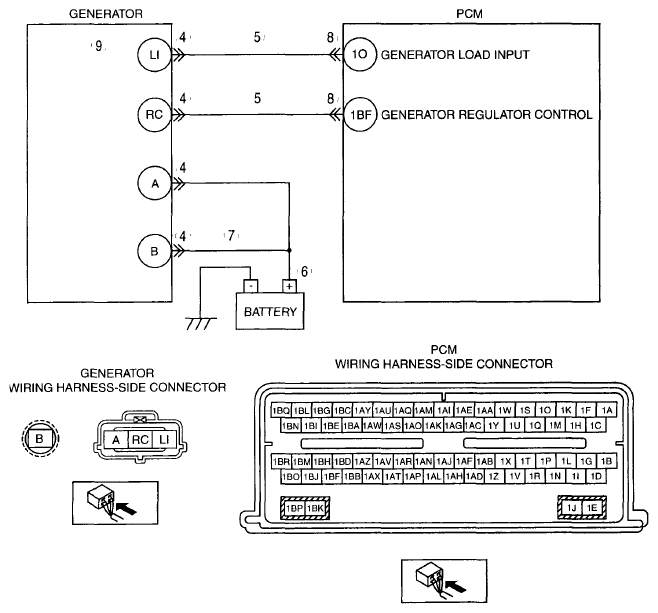

- Short to ground between generator terminal RC and PCM terminal 1BF
- Short to ground between generator terminal LI and PCM terminal 10
- Connector or terminal malfunction
- Open circuit between terminal B and battery positive terminal
- Low system voltage
- Generator malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
