DTC P0452:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0452:00 |
Fuel tank pressure sensor low input |
| DETECTION CONDITION |
- The PCM monitors the evaporative emission (EVAP) control system fuel tank pressure sensor input signal to the PCM. The test fails when the signal average drops below a minimum allowable calibrated parameter.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

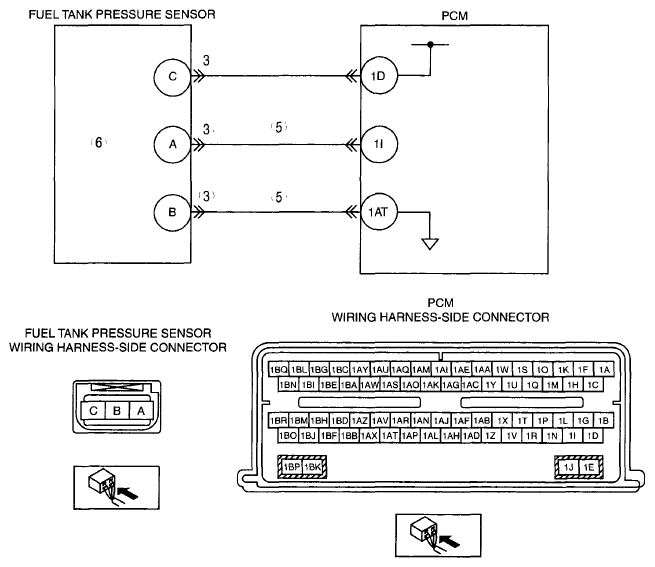

- Short to ground between fuel tank pressure sensor terminal A and PCM terminal 11
- Fuel tank pressure sensor signal circuit and ground circuit for short each other
- Fuel tank pressure sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
