DTC P0344:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0344:00 |
CMP sensor (RH) circuit intermittent |
| DETECTION CONDITION |
- The test fails when the PCM detects an intermittent signal from the CMP sensor
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

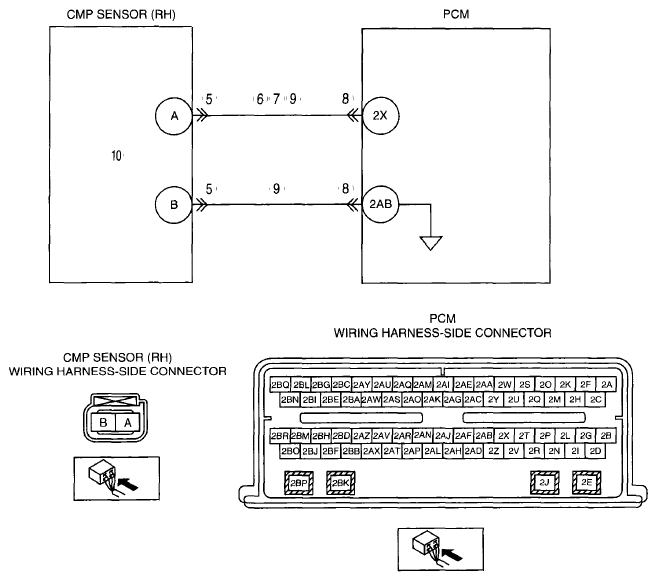

- Short to power supply between CMP sensor (RH) terminal A and PCM terminal 2X
- Short to ground circuit between CMP sensor (RH) terminal A and PCM terminal 2X
- Open circuit between CMP sensor (RH) terminal A and PCM terminal 2X
- Open circuit between CMP sensor (RH) terminal B and PCM terminal 2AB
- CMP sensor (RH) malfunction
- Sensor shielding malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
