DTC P0340:00 [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE

DTC P0340:00 CMP sensor (RH) circuit
DETECTION CONDITION
  • The test fails when the PCM can no longer detect the signal from the CMP sensor (RH).
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Short to power supply between CMP sensor (RH) terminal A and PCM terminal 2X
  • Short to ground circuit between CMP sensor (RH) terminal A and PCM terminal 2X
  • Open circuit between CMP sensor (RH) terminal A and PCM terminal 2X
  • Open circuit between CMP sensor (RH) terminal B and PCM terminal 2AB
  • CMP sensor (RH) malfunction
  • PCM malfunction

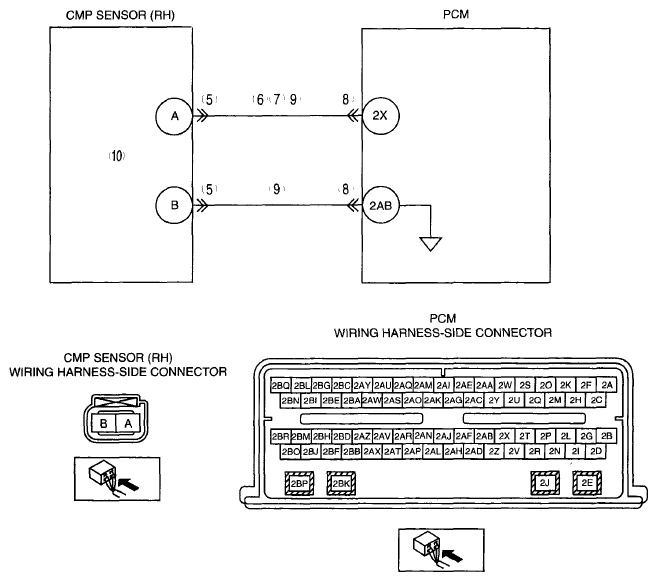

G06199125Courtesy of MAZDA MOTORS CORP.
