DTC P0222:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0222:00 |
TP sensor No. 2 circuit low input |
| DETECTION CONDITION |
- The TP sensor No. 2 circuit was flagged as a concern by the PCM indicating a low voltage or open circuit.
|
| POSSIBLE CAUSE |

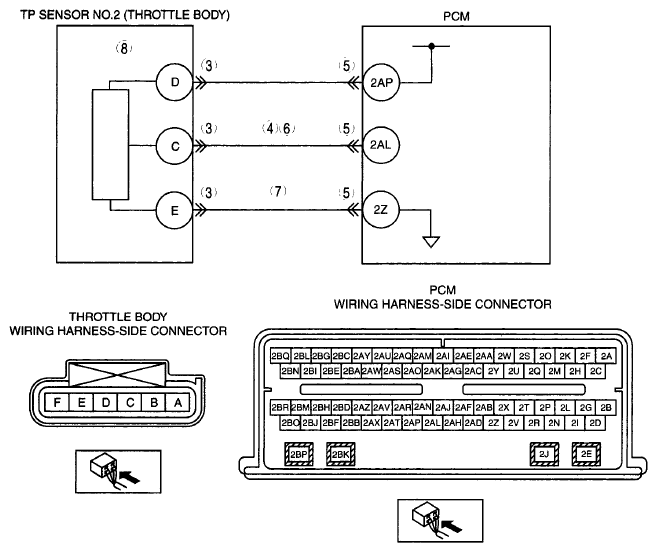

- Connector or terminal malfunction
- Short to ground circuit between throttle body terminal C and PCM terminal 2AL
- Open circuit between throttle body terminal C and PCM terminal 2AL
- Open circuit between throttle body terminal E and PCM terminal 2Z
- TP sensor No. 2 malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
