DTC P0113:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0113:00 |
IAT sensor circuit high input |
| DETECTION CONDITION |
- Indicates the sensor signal is more than the self-test maximum. The IAT sensor maximum is 4.6 V or -50 °C {-58 °F}.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- IAT sensor malfunction

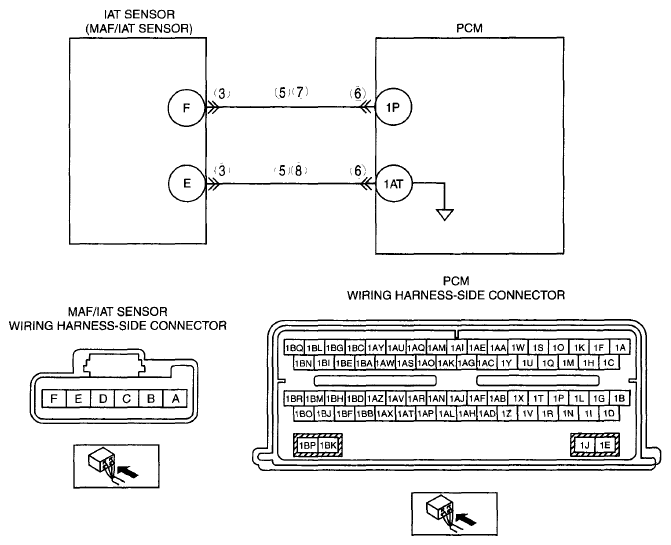

- Short to power supply between MAF/IAT sensor terminal F and PCM terminal 1P
- Open circuit between MAF/IAT sensor terminal F and PCM terminal 1P
- Open circuit between MAF/IAT sensor terminal E and PCM terminal 1 AT
|
