DTC P0010:00 [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0010:00 |
Variable valve timing actuator circuit open (RH) |
| DETECTION CONDITION |

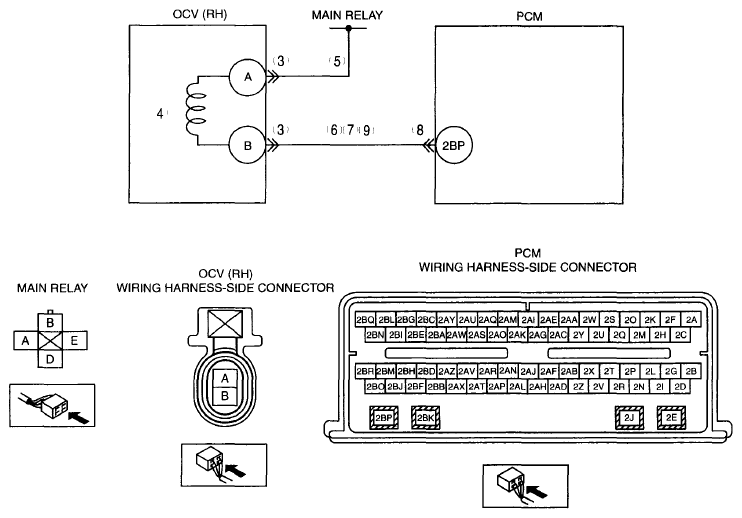

- The PCM monitors the OCV (RH) circuit to the PCM for high and low voltage. The test fails if the voltage exceeds or falls below a calibrated limit for a calibrated amount of time.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- OCV (RH) malfunction
- Open circuit between OCV (RH) terminal A and main relay terminal A
- Short to power supply between OCV (RH) terminal B and PCM terminal 2BP
- Short to ground circuit between OCV (RH) terminal B and PCM terminal 2BP
- Open circuit between OCV (RH) terminal B and PCM terminal 2BP
|
 Courtesy of MAZDA MOTORS CORP.
|
