On-Board Diagnostic Wiring Diagram [MZI-3.7]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

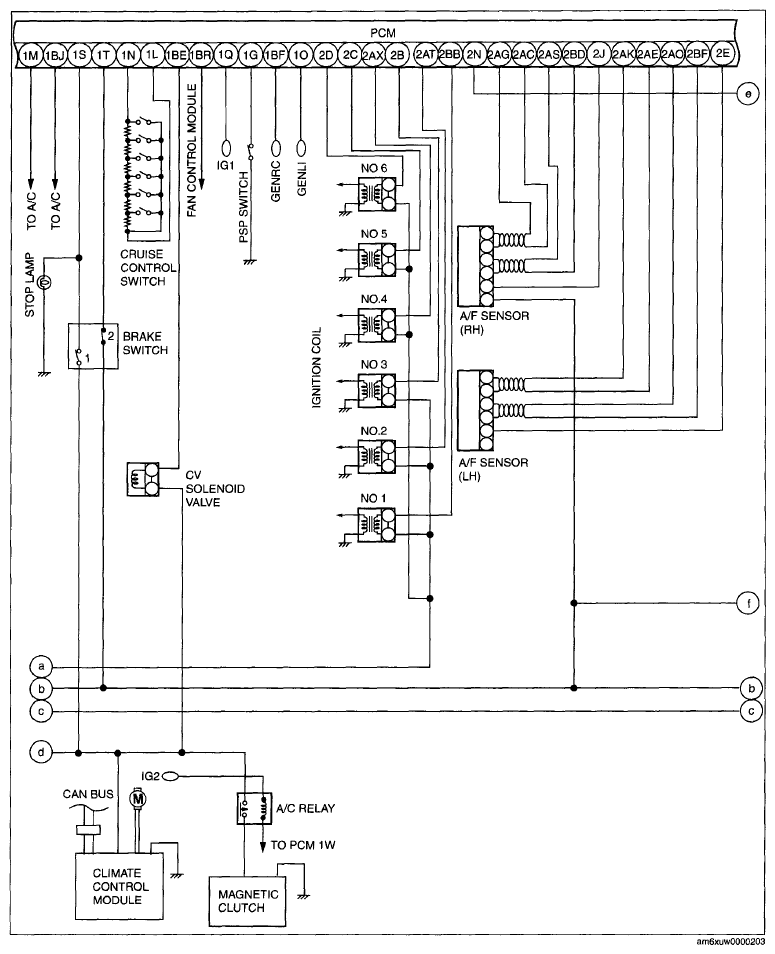

Fig 1: On-Board Diagnostic Wiring Diagram (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

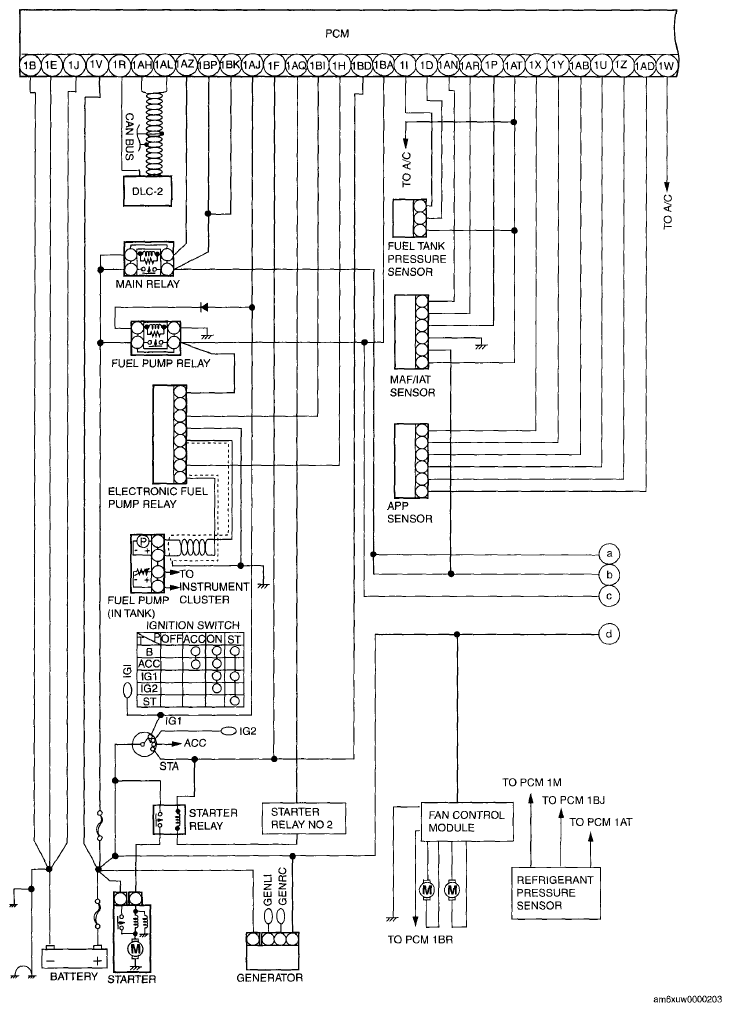

Fig 2: On-Board Diagnostic Wiring Diagram (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

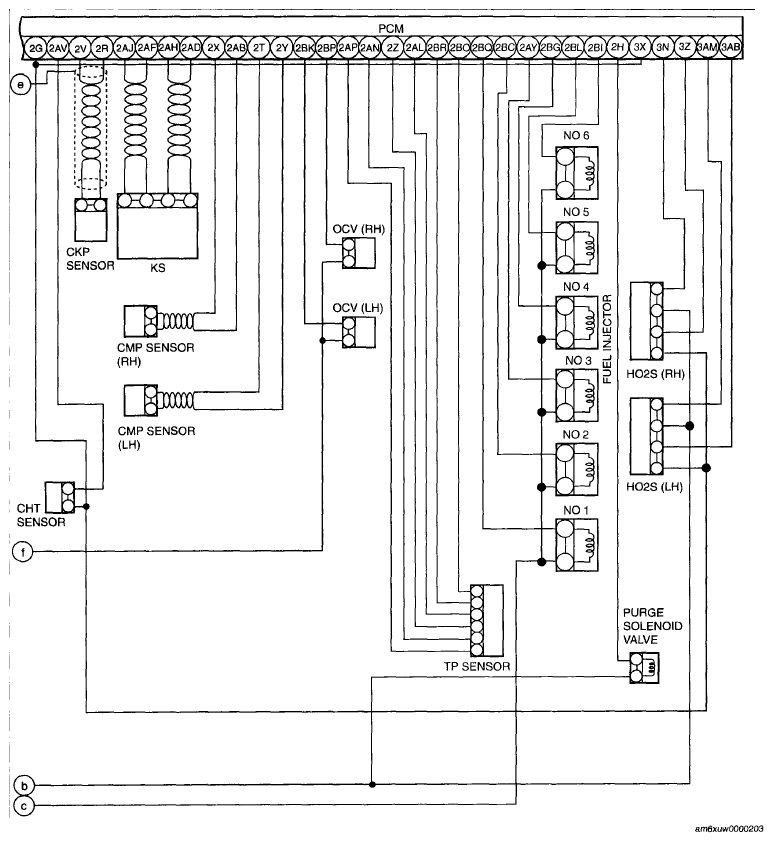

Fig 3: On-Board Diagnostic Wiring Diagram (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
