Rear Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Removing the rear door without supporting it could cause the rear door to fall and cause serious injury. Always perform the procedure with at least another person to prevent the rear door from falling.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Adjust the rear door. See DOOR ADJUSTMENT .

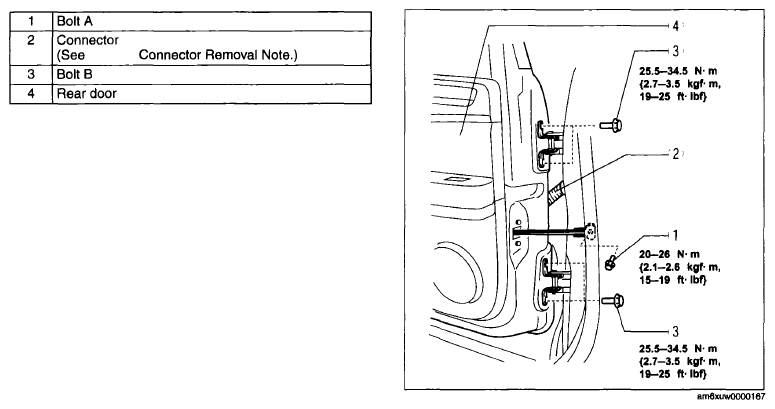

Fig 1: Rear Door Connector With Mounting Bolts Torque Specifications
G06205696Courtesy of MAZDA MOTORS CORP.
