Front Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Removing the front door without supporting it could cause the front door to fall and cause serious injury. Always perform the procedure with at least another person to prevent the front door from falling.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Adjust the front door. See DOOR ADJUSTMENT .

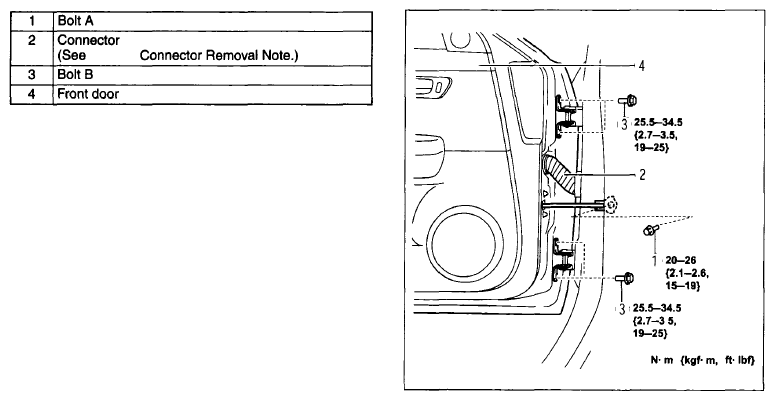

Fig 1: Front Door Mounting Bolts And Connector With Torque Specifications
G06205684Courtesy of MAZDA MOTORS CORP.
