DTC Inspection [Blind Spot Monitoring (BSM)]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

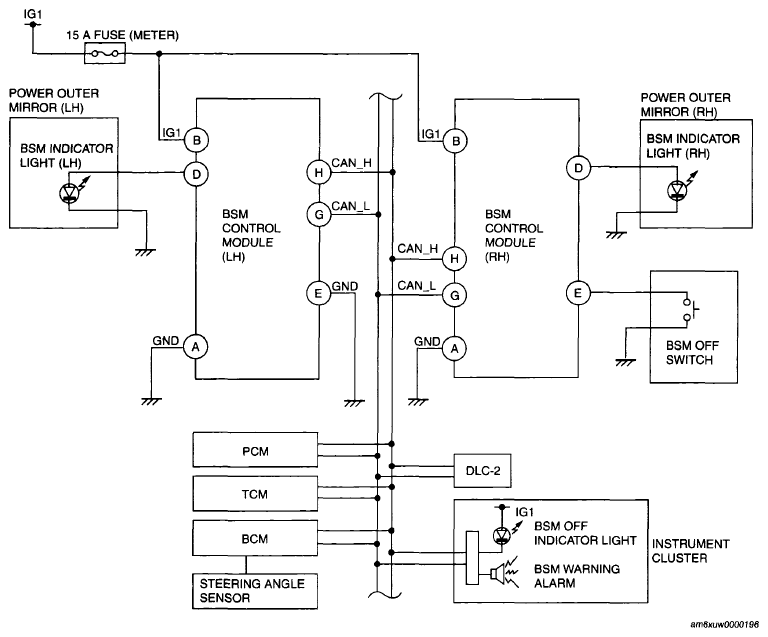

Fig 1: On-Board Diagnostic Wiring Diagram

Courtesy of MAZDA MOTORS CORP.

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
  1. Select "Self Test".
  2. Select "Modules".
  3. Select "BSML" or "BSMR".
- When using the PDS (Pocket PC)
  1. Select "Module Tests".
  2. Select "BSML" or "BSMR".
  3. Select "Self Test"
Verify the DTC according to the directions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.
After completion of repairs, clear all DTCs stored in the BSM control module. See CLEARING DTC [BLIND SPOT MONITORING (BSM)] .

Fig 2: Identifying Data Link Connector DLC-2 Location

Courtesy of MAZDA MOTORS CORP.
