Front Buckle Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. . FRONT SEAT REMOVAL/INSTALLATION .
  4. Remove the front buckle connector.
  5. Remove the bolt.
  6. Remove the front buckle.
  7. Install in the reverse order of removal.

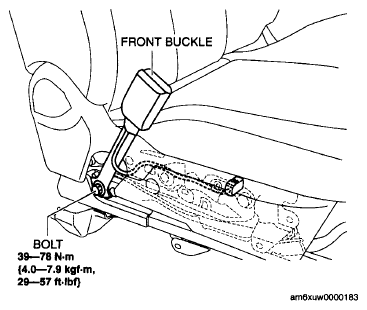

    Fig 1: Front Buckle And Bolt With Torque Specifications
    G06206103Courtesy of MAZDA MOTORS CORP.
