Section 623 (On-Board Diagnostic [Restraints System))
>>
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

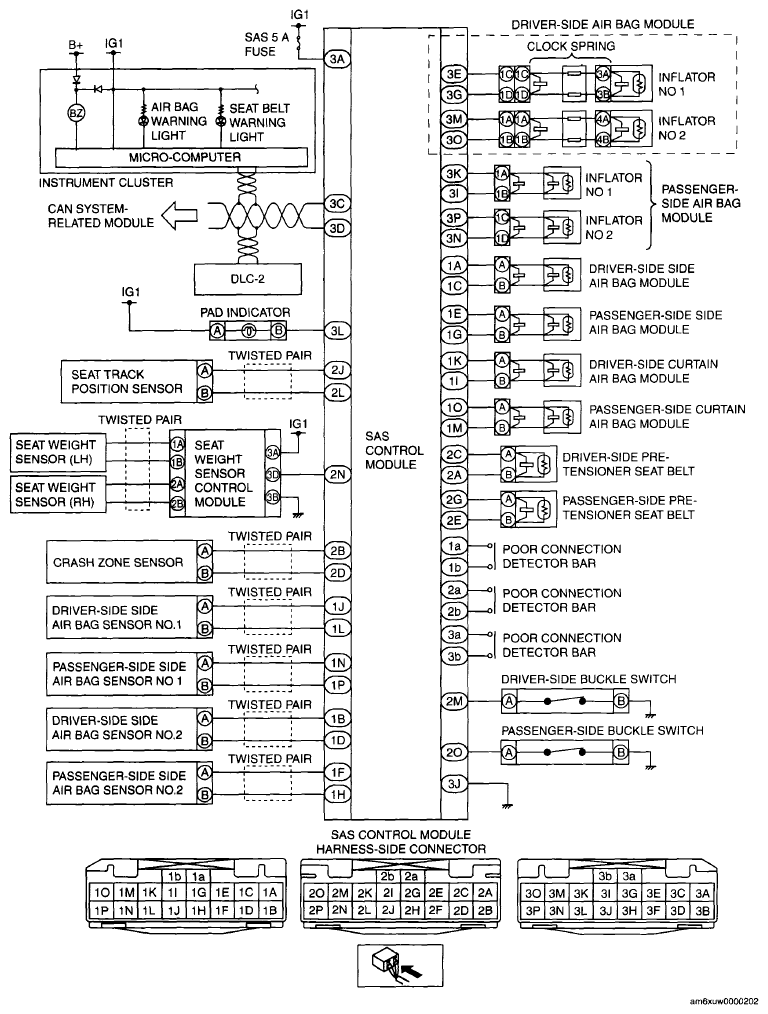

Fig 1: On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
