System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

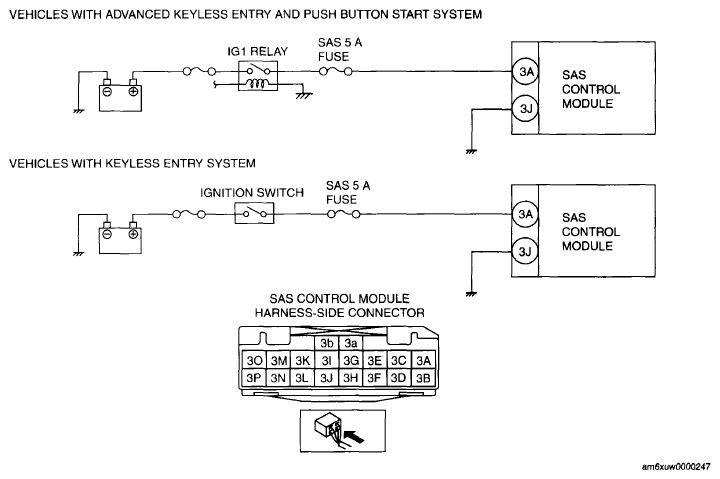

Fig 1: U3003:16/U3003:17 System Wiring Diagram
G06200421Courtesy of MAZDA MOTORS CORP.
