System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

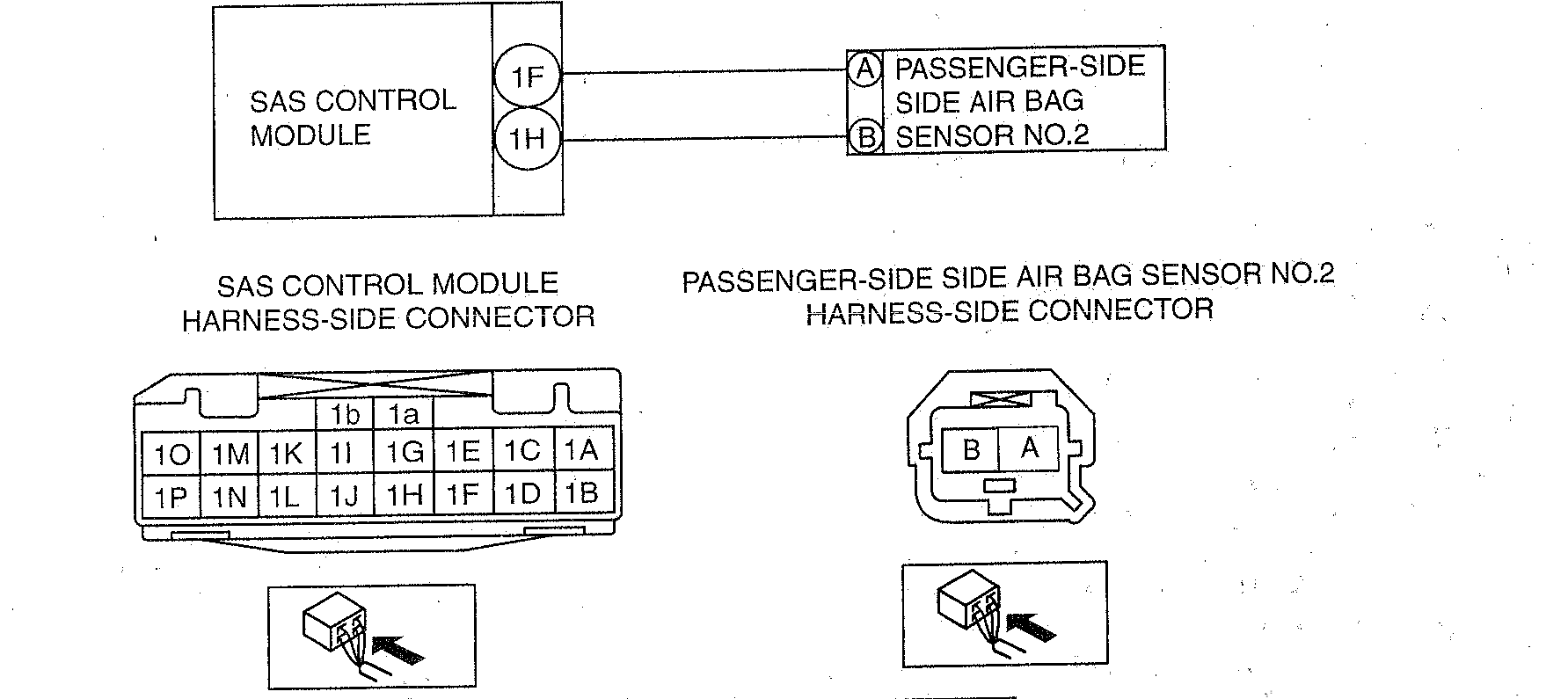

Fig 1: B1197:11/ B1197:12/ B1197:87/ B1197:96 System Wiring Diagram
G00485131Courtesy of MAZDA MOTORS CORP.
