System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

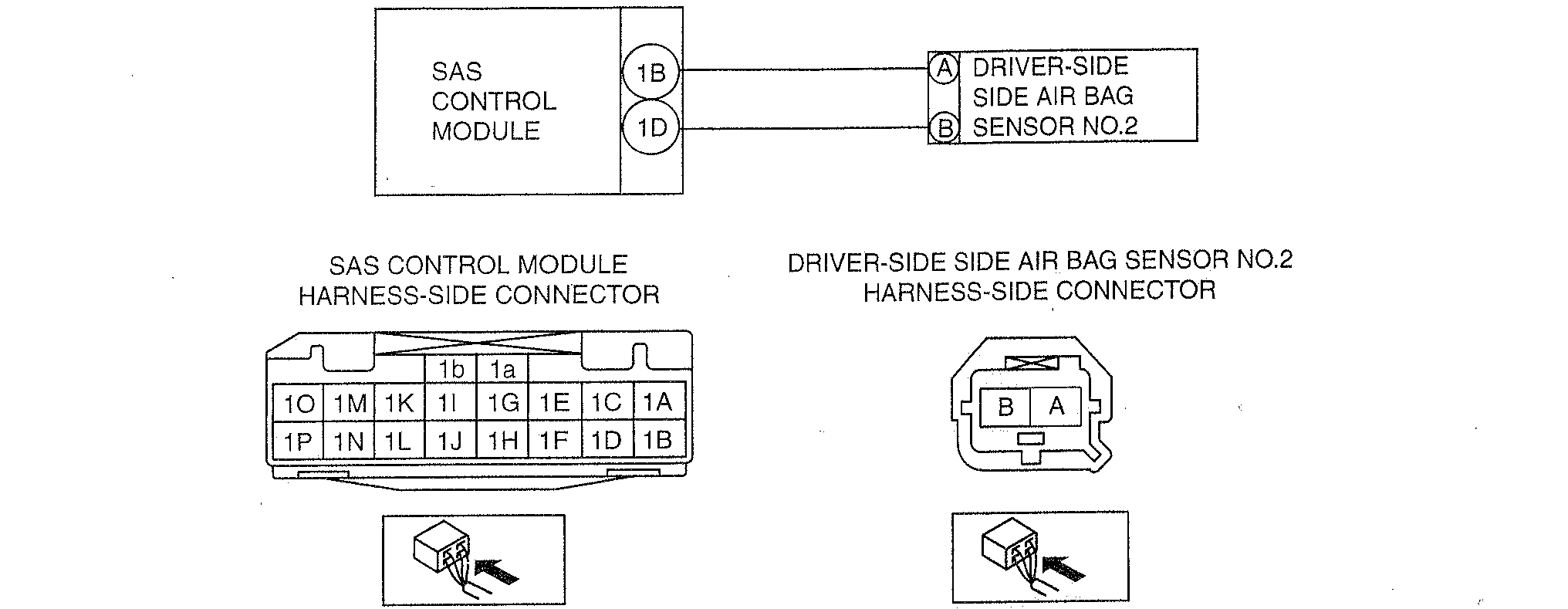

Fig 1: B1196:11/ B1196:12/ B1196:87/ B1196:96 System Wiring Diagram
G00485130Courtesy of MAZDA MOTORS CORP.
