System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

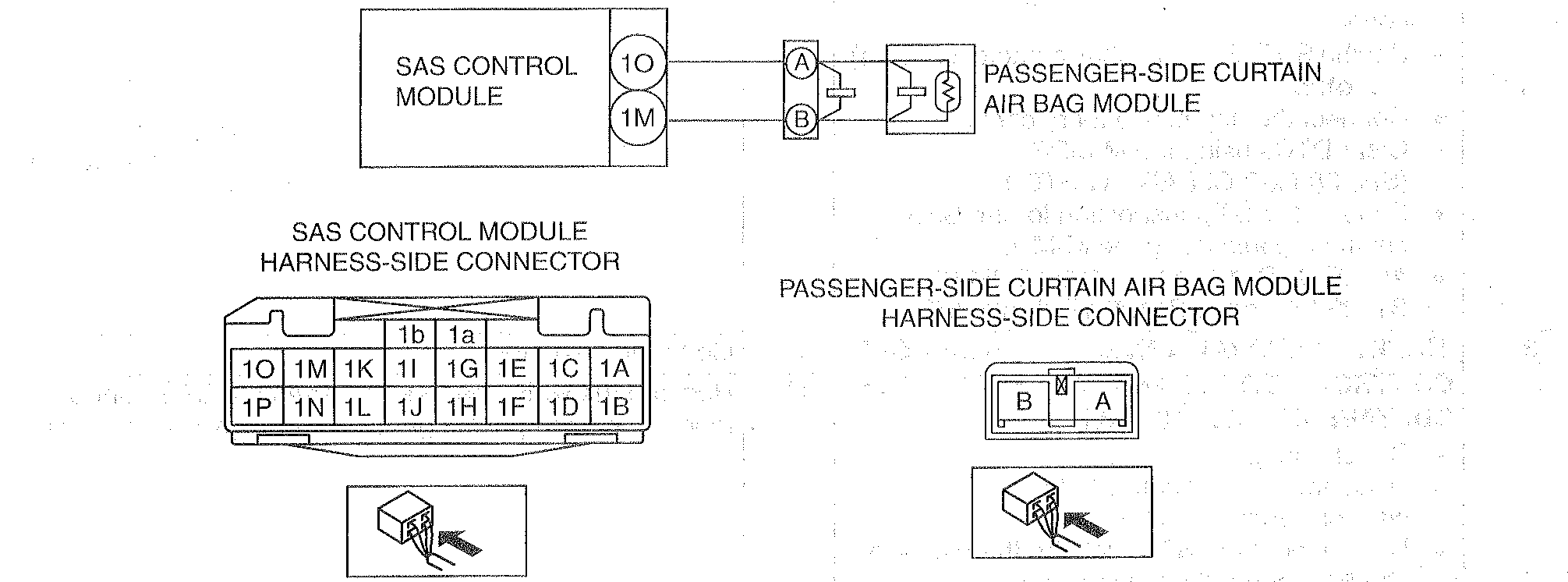

Fig 1: B1129:11, B1129:12, B1129:19, B1129:1A, B1129:1B System Wiring Diagram
G00485129Courtesy of MAZDA MOTORS CORP.
