System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

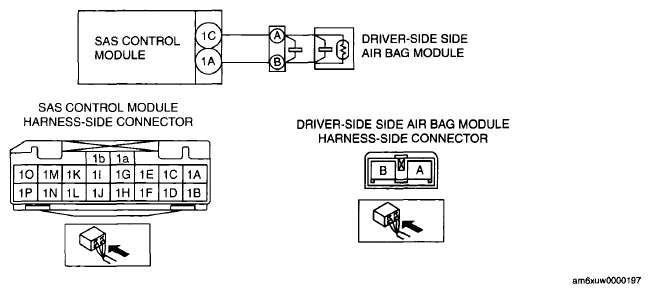

Fig 1: B1126:11, B1126:12, B1126:19, B1126:1A, B1126:1B System Wiring Diagram
G06200415Courtesy of MAZDA MOTORS CORP.
