System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

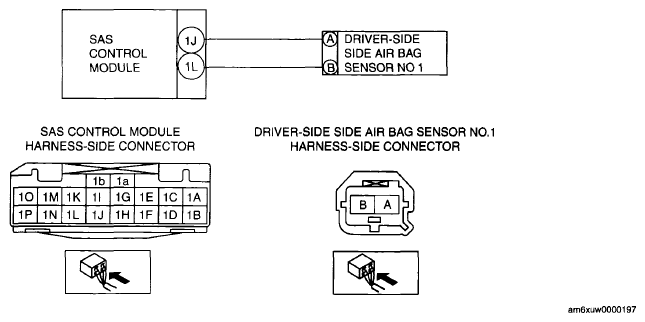

Fig 1: B10FE:11, B10FE:12, B10FE:87, B10FE:96 System Wiring Diagram

Courtesy of MAZDA MOTORS CORP.
