Section 623 (On-Board Diagnostic [Restraints System))
>>
DTC B0094:11/B0094:12/B0094:87/B0094:96
>>
System Wiring Diagram
System Wiring Diagram
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

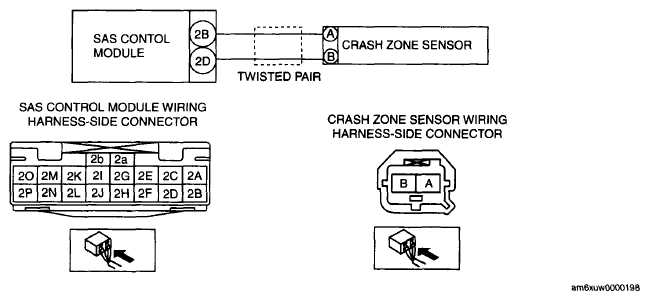

Fig 1: B0094:11, B0094:12, B0094:87, B0094:96 System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
