System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

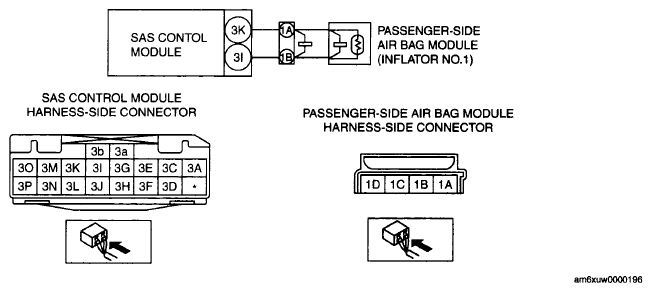

Fig 1: B0010:11, B0010:12, B0010:19, B0010:1A, B0010:1B System Wiring Diagram
G06200402Courtesy of MAZDA MOTORS CORP.
