System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

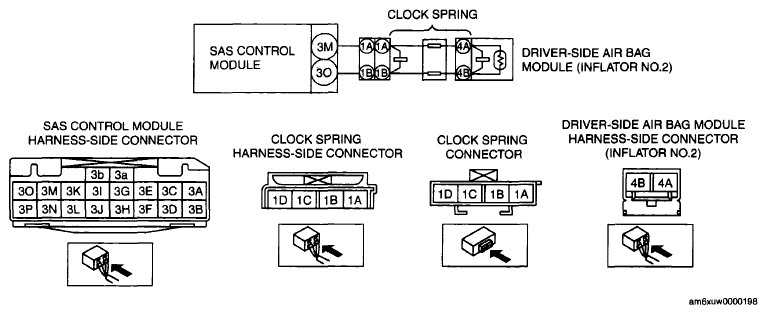

Fig 1: B0002:11, B0002:12, B0002:1A, B0002:1B System Wiring Diagram
G06200401Courtesy of MAZDA MOTORS CORP.
