Ventilator Grille Removal/Installation: Side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Pull out the fin of the ventilator grill with turning it while disconnecting the tab of the ventilator grill cover.

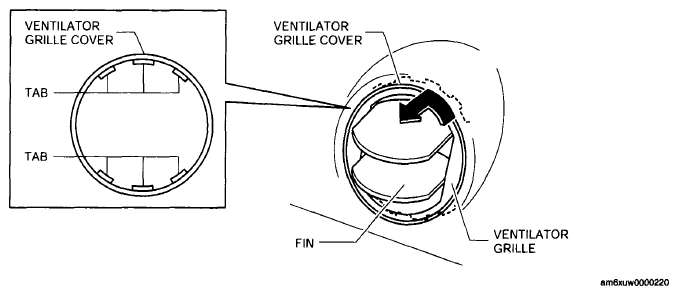

Fig 1: Turning Ventilator Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
