Rear (Vehicles With Rear Ventilator Grille)

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear console panel. See REAR CONSOLE REMOVAL/INSTALLATION .
  3. Remove the rear ventilator grille.

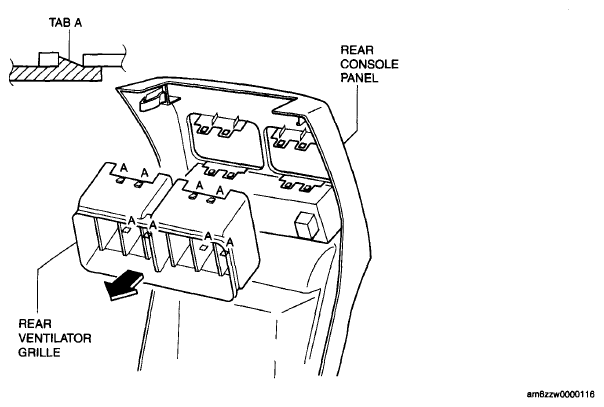

    Fig 1: Removing/Installing Rear Ventilator Grille
    G06199470Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
