Ventilator Grille Removal/Installation: Center

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center panel upper. See CENTER PANEL UPPER REMOVAL/INSTALLATION )
  3. Remove the screw

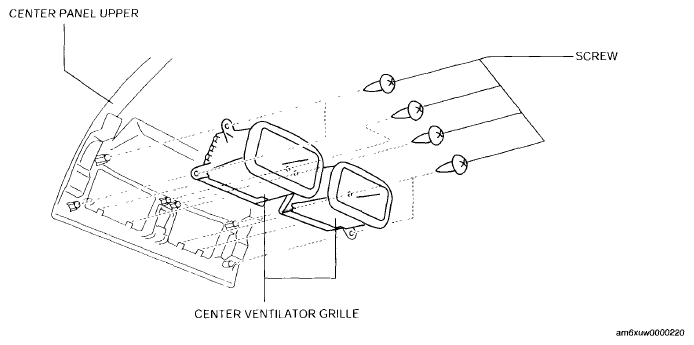

    Fig 1: Identifying Center Panel Upper, Center Ventilation Grille And Mounting Screws
    G06199468Courtesy of MAZDA MOTORS CORP.
  4. Remove the ventilator grille from the center panel upper
  5. Install in the reverse order of removal
