Section 620 (Interior Trim)
>>
Trunk Side Trim Removal/Installation
>>
Right Side
Right Side
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Remove the fasteners and hook, then remove the trunk side trim.

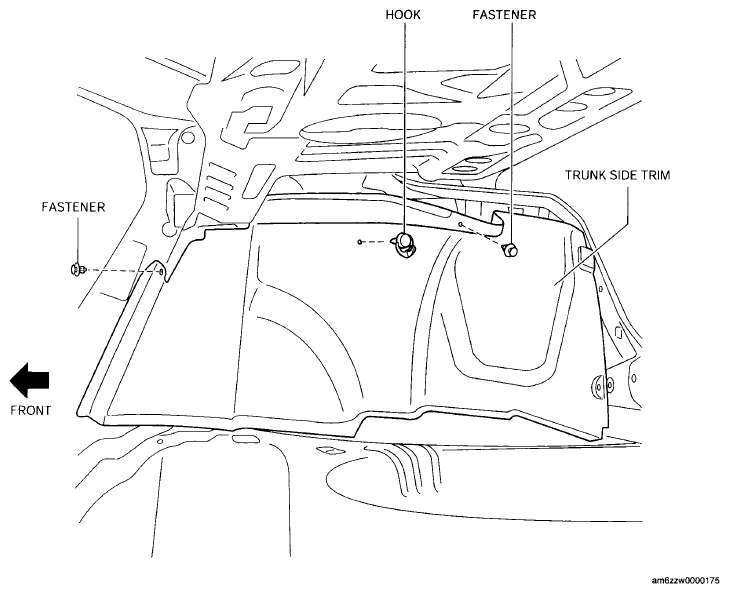

Fig 1: Identifying Trunk Side Trim With Fasteners (Right Side)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
