Speaker Grille Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips on the speaker grille

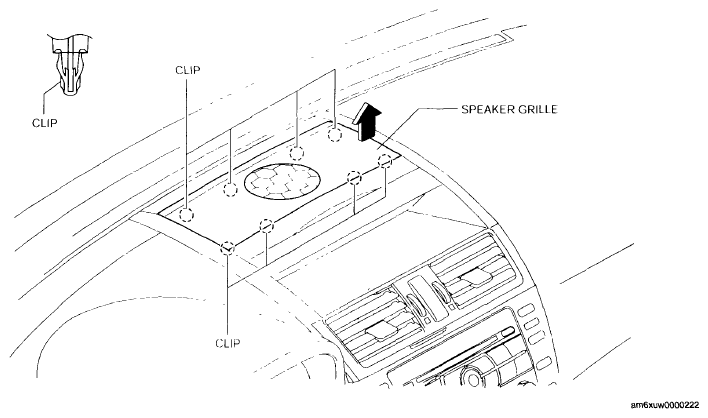

Fig 1: Removing/Installing Speaker Grille Clips
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal
