Side Panel Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

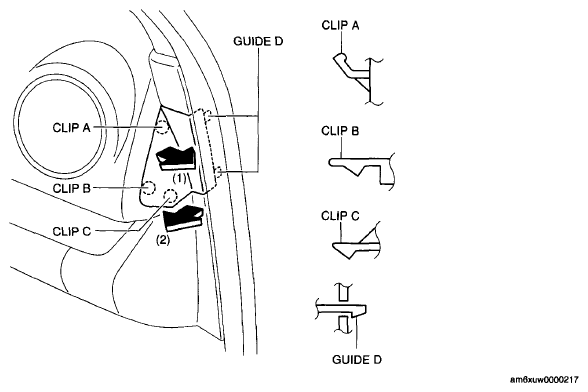

- Pull the side panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the clips A, B, C and guide.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
