Vehicles Without Rear Ventilator Grille
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

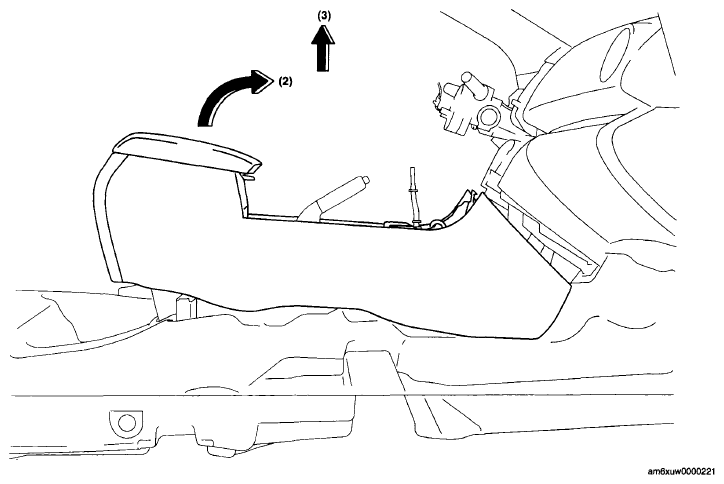

- Pull up the rear console in the direction of the arrow (2) shown in the figure, move the rear console in the direction of the arrow (3), and remove it avoiding the parking brake lever.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
