Vehicles With Rear Ventilator Grille

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clip F and hook G.

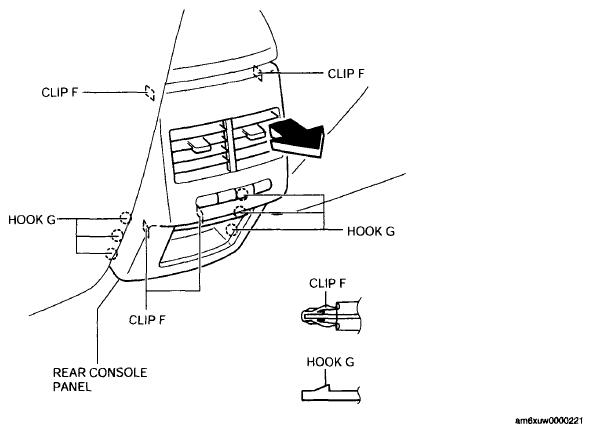

    Fig 1: Removing/Installing Clip F And Hook G
    G06199481Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear console panel.
  3. Remove the rear fan switch connector.
  4. Remove the screw H.
    Fig 2: Identifying Screw H On Rear Console
    G06199482Courtesy of MAZDA MOTORS CORP.
  5. Pull up the rear console in the direction of the arrow (2) shown in the figure, move the rear console in the direction of the arrow (3), and remove it avoiding the parking brake lever.

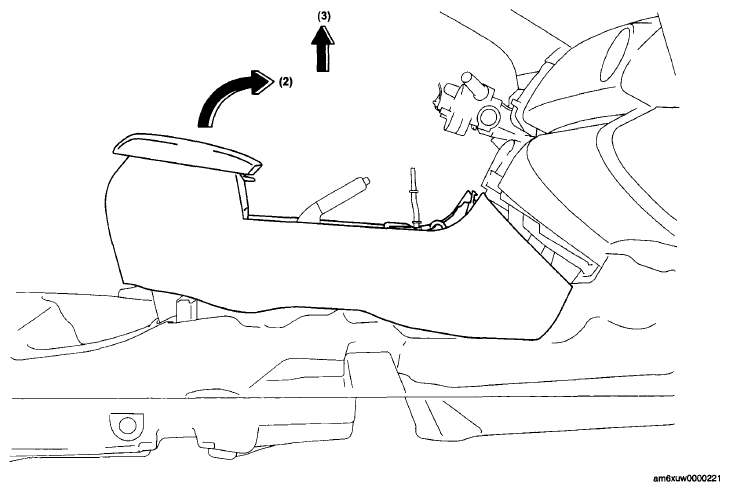

    Fig 3: Removing/Installing Rear Console
    G06199483Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
