Rear Console Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    2. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
    3. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    4. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
  3. Disconnect the auxiliary jack connector and accessory socket connector.
  4. Remove the screws A, B and screw C.

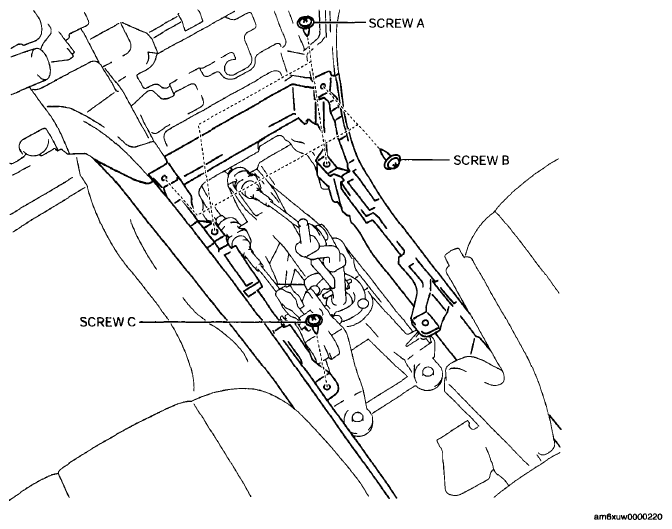

    Fig 1: Identifying Rear Console Mounting Screws
    G06199476Courtesy of MAZDA MOTORS CORP.
  5. Remove the storage box and mat.

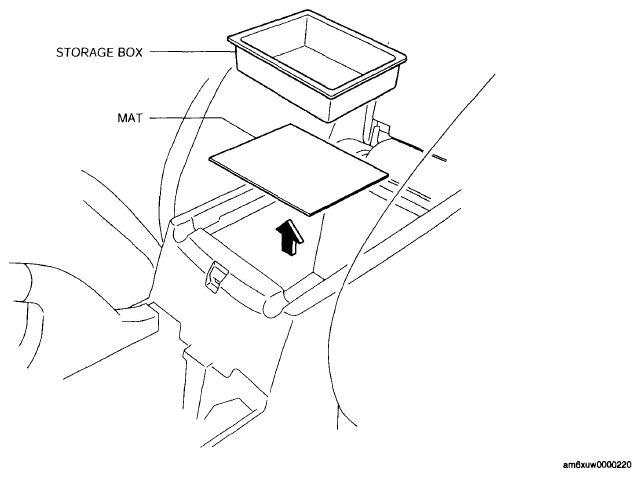

    Fig 2: View Of Storage Box And Mat
    G06199477Courtesy of MAZDA MOTORS CORP.
  6. Open the console lid and remove the screws D.

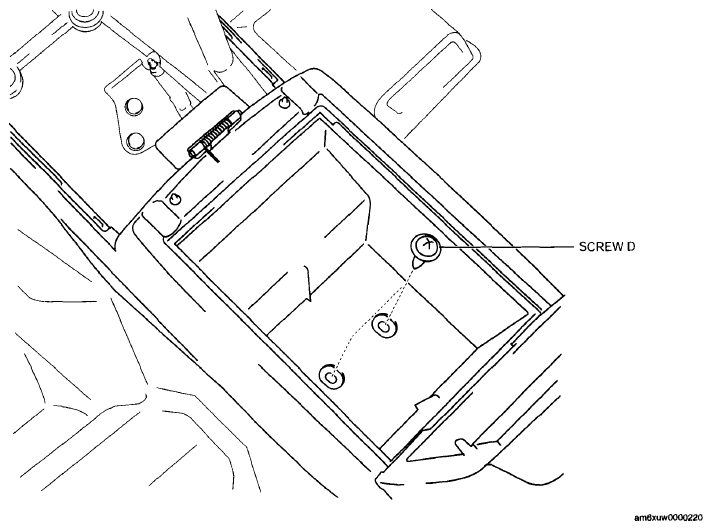

    Fig 3: Identifying Screw D
    G06199478Courtesy of MAZDA MOTORS CORP.
  7. Pull the rear console in the direction of the arrow in the order of (1), then detaching clip E.

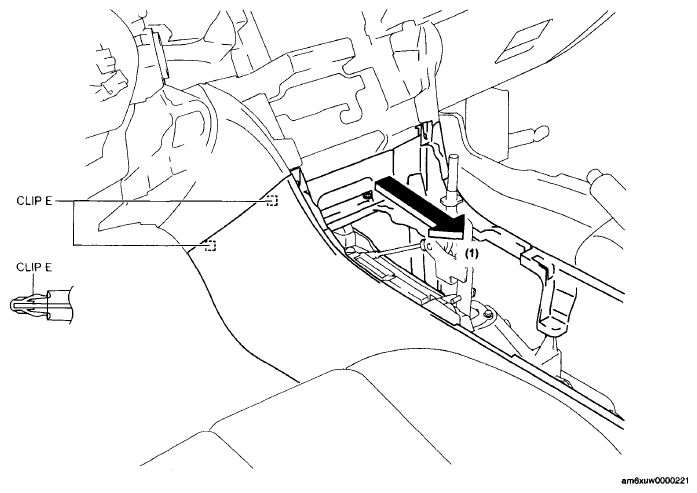

    Fig 4: Pulling Rear Console In Direction Of Arrow
    G06199479Courtesy of MAZDA MOTORS CORP.
