Vehicles With Rear Ventilator Grille

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

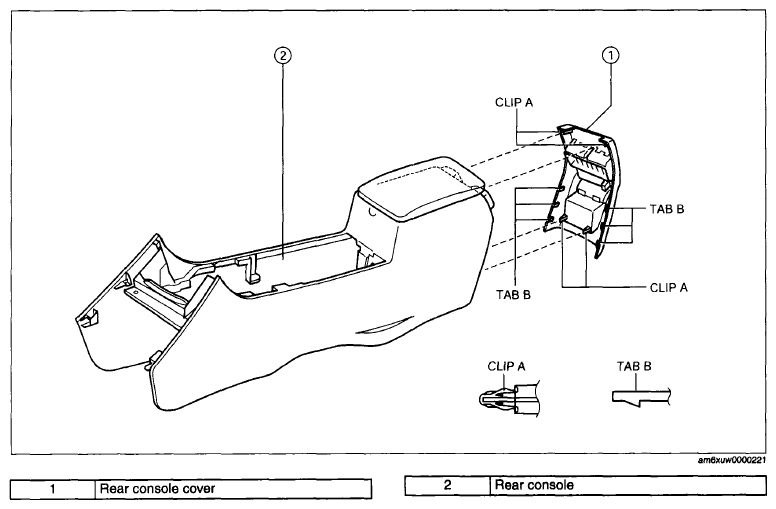

    Fig 1: Disassembled View Of Rear Console (Vehicles With Rear Ventilator Grille)
    G06199485Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
