Interior Trim Location Index

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

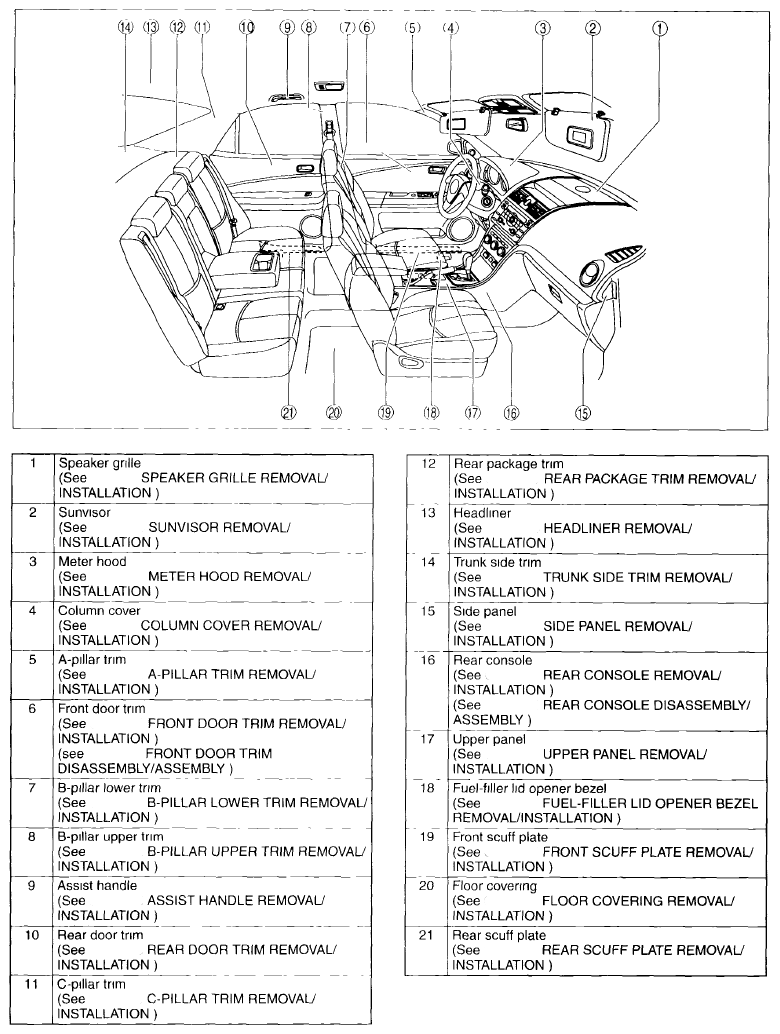

Fig 1: Identifying Interior Trim Components Location (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

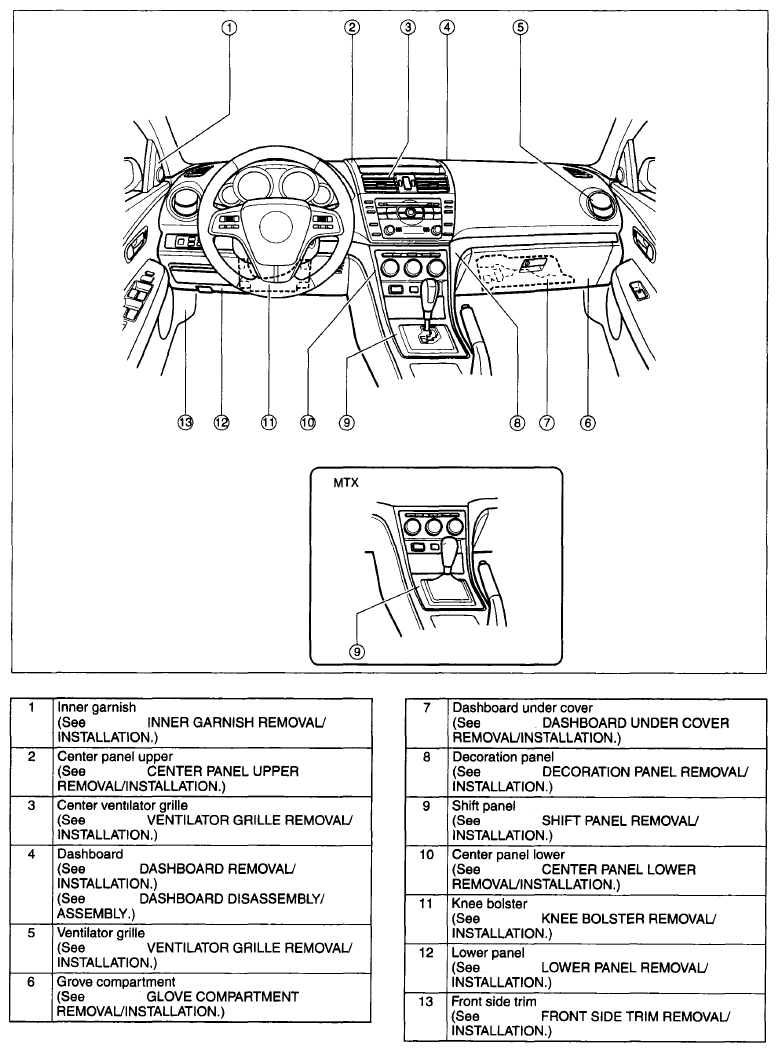

Fig 2: Identifying Interior Trim Components Location (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

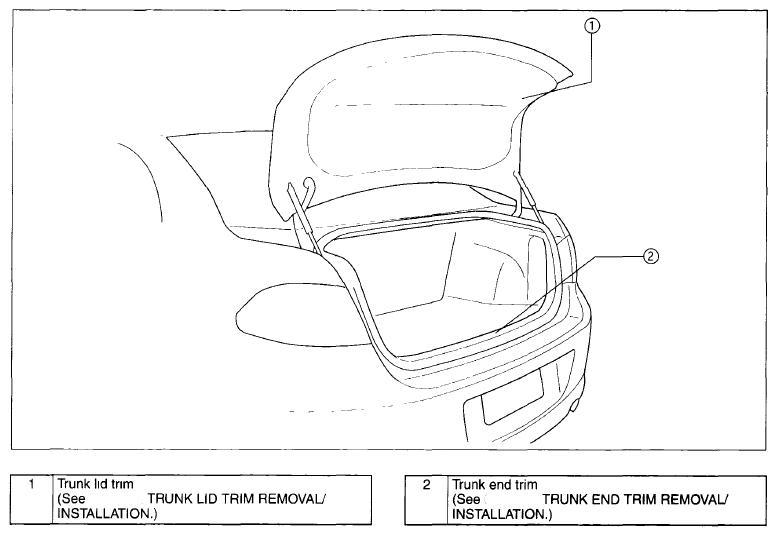

Fig 3: Identifying Trunk Lid Trim And Trunk End Trim

Courtesy of MAZDA MOTORS CORP.
