Front Door Trim Disassembly/Assembly: Passenger-side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

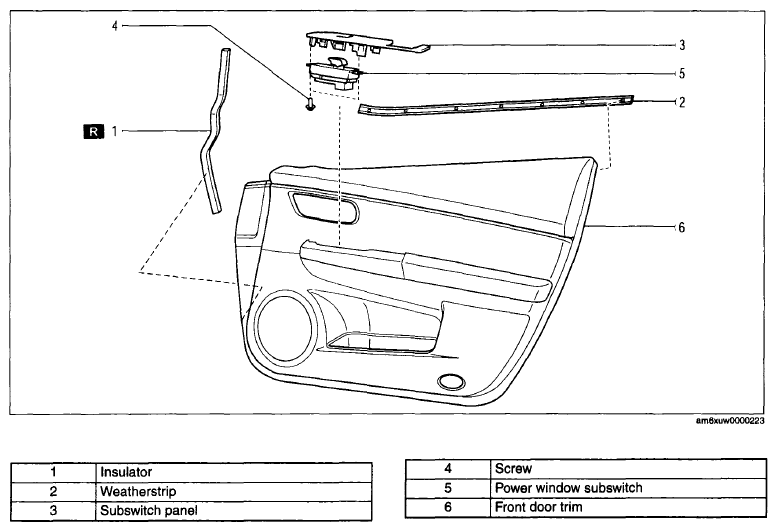

    Fig 1: Disassembled View Of Front Door Trim (Passenger-Side)
    G06199512Courtesy of MAZDA MOTORS CORP.
