Dashboard Under Cover Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

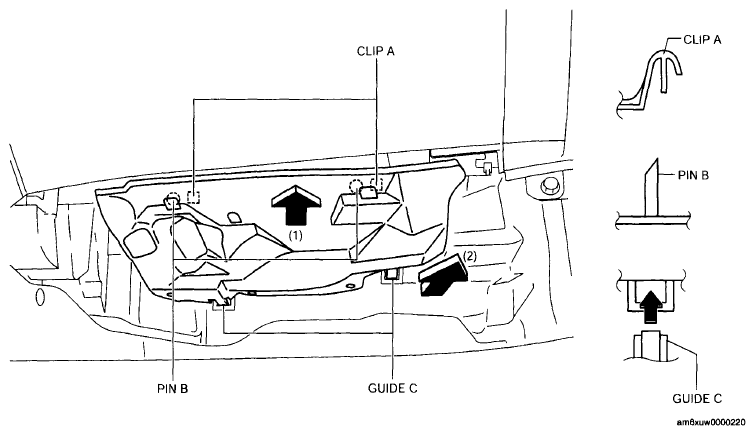

- Detach clip A, pin B and guide C by pulling them in the direction of the arrow (1), (2).
Courtesy of MAZDA MOTORS CORP.
- Remove the dashboard under cover.
- Install in the reverse order of removal.
