Parking Brake Lever Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

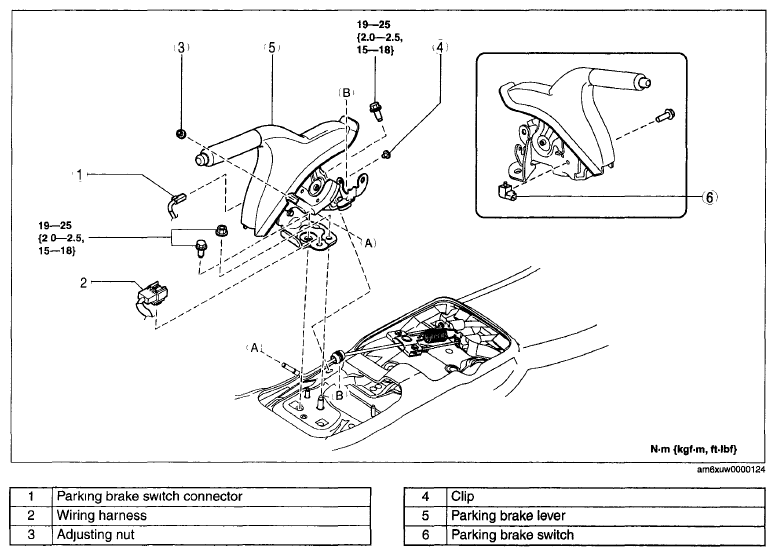

Fig 1: Exploded View Of Identifying Parking Brake Lever With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
2. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION ).
6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
Remove in the order indicated in the table. See Fig 1.
Install in the reverse order of removal.
After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION ).
