Front Parking Brake Cable Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    2. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
    4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
    5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION ).
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table. See Fig 1.

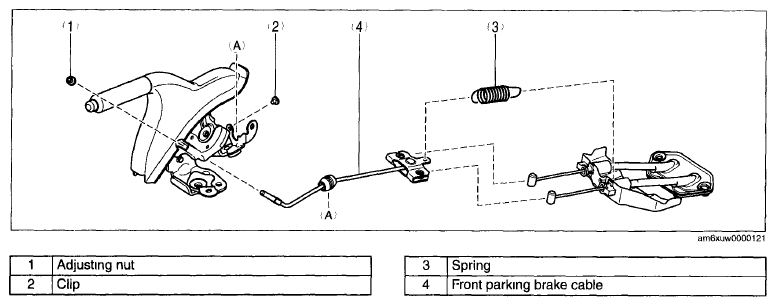

    Fig 1: Identifying Front Parking Brake Cable Removal Order
    G06205548Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION ).
