Rear Axle Location Index

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

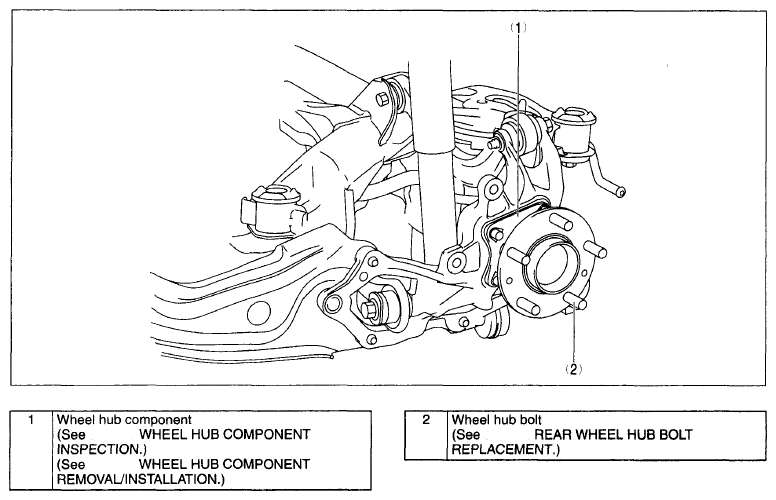

Fig 1: Locating Rear Axle Components
G06205454Courtesy of MAZDA MOTORS CORP.
