Clearance Inspection: Clearance

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

0.6-1.5 mm {0.03-0.05 in}

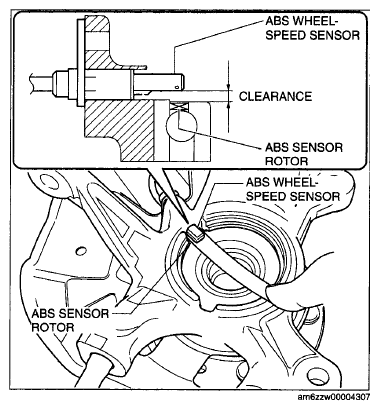

Fig 1: Measuring Gap Between ABS Sensor Rotor And ABS Wheel-Speed Sensor Using Feeler Gauge

Courtesy of MAZDA MOTORS CORP.
