DTC P1536:13 [BCM]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE

DESCRIPTION  Parking brake switch circuit malfunction
DETECTION CONDITION
  • Open circuit detected in parking brake switch circuit with the parking brake lever applied (parking brake switch on)
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Parking brake switch malfunction
  • Open circuit in wiring harness between parking brake switch terminal A and BCM terminal 8A
  • BCM malfunction

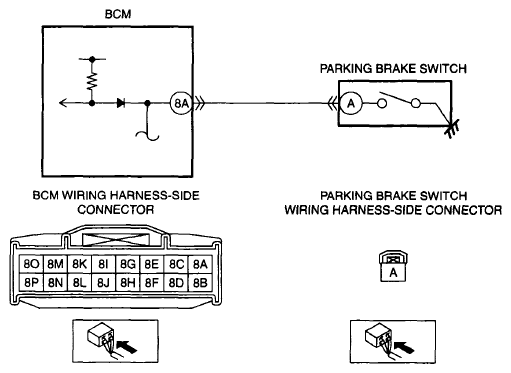

G06200577Courtesy of MAZDA MOTORS CORP.
