DTC C1137:12 [BCM]: L5/ATX
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Transaxle range switch circuit malfunction |
| DETECTION CONDITION |
- Short to power supply in transaxle range switch circuit with the selector lever in P or N position (transaxle range switch off)
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Transaxle range switch malfunction

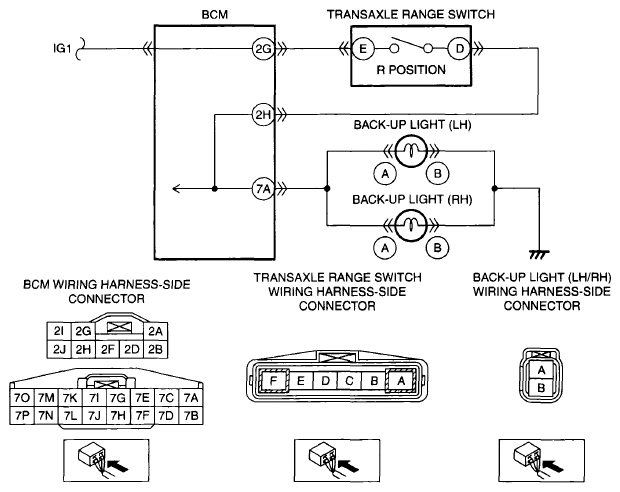

- Short to power supply in wiring harness between transaxle range switch terminal D and BCM terminal 2H
- Short to power supply in wiring harness between back-up light (LH/RH) terminal A and BCM terminal 7A
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
