DTC B1D36:11 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Turn switch circuit malfunction |
| DETECTION CONDITION |
- Short to ground detected in turn switch circuit with the turn switch off
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Turn switch malfunction

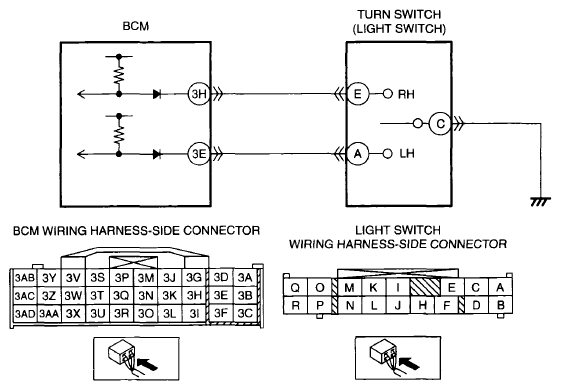

- Short to ground in wiring harness between light switch terminal E and BCM terminal 3H
- Short to ground in wiring harness between light switch terminal A and BCM terminal 3E
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
