DTC B1D35:11 [BCM]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE

DESCRIPTION Hazard warning switch circuit malfunction
DETECTION CONDITION
  • Short to ground detected in hazard warning switch circuit with the hazard warning switch off
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Hazard warning switch malfunction
  • Short to ground in wiring harness between hazard warning switch terminal B and BCM terminal 3W
  • BCM malfunction

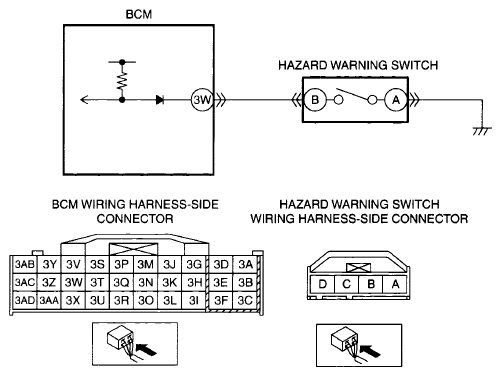

G06200556Courtesy of MAZDA MOTORS CORP.
