DTC B11DA:11 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Front door key cylinder switch (driver-side) circuit malfunction |
| DETECTION CONDITION |
- Short to ground detected in front door key cylinder switch (driver-side) circuit with the front door key cylinder switch (driver-side) off
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Front door key cylinder switch (driver-side) malfunction

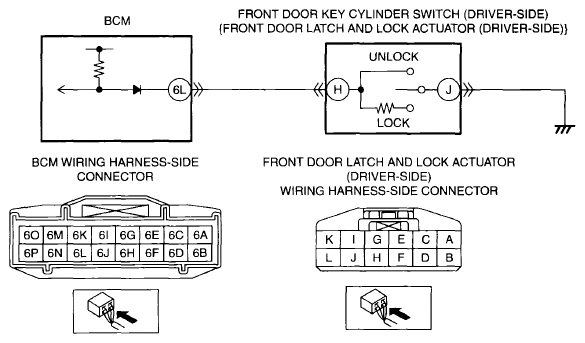

- Short to ground in wiring harness between front door latch and lock actuator (driver-side) terminal H and BCM terminal 6L
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
