DTC B11C1:13 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

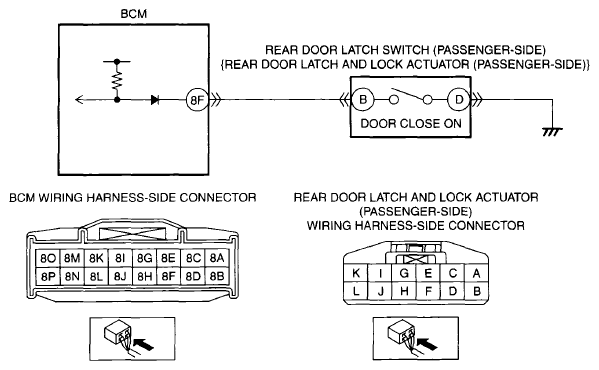

DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Rear door latch switch (passenger-side) circuit malfunction |
| DETECTION CONDITION |
- Open circuit detected in rear door latch switch (passenger-side) circuit with the rear door (passenger-side) closed {rear door latch switch (passenger-side) on}
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in wiring harness between rear door latch and lock actuator (passenger-side) terminal D and body ground
- Rear door latch switch (passenger-side) malfunction
- Open circuit in wiring harness between rear door latch and lock actuator (passenger-side) terminal B and BCM terminal 8F
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
