DTC B1178:11 [BCM]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Trunk lid latch switch circuit malfunction |
| DETECTION CONDITION |
- Short to ground detected in trunk lid latch switch circuit with the trunk closed (trunk lid latch switch off)
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Trunk lid latch switch malfunction

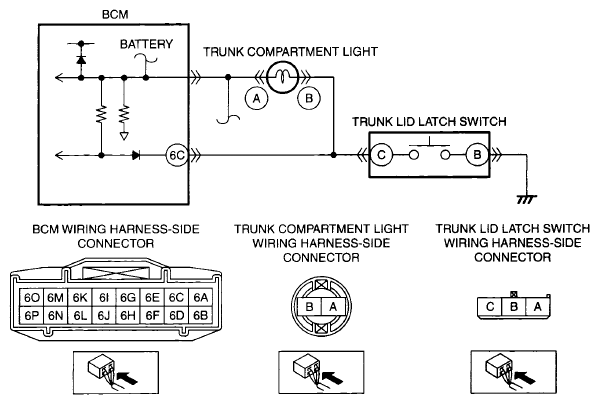

- Short to ground in wiring harness between trunk lid latch switch terminal C and BCM terminal 6C
- Short to ground in wiring harness between trunk compartment light terminal B and BCM terminal 6C
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
